Porsche 924 Carrera GTS Technical Manual

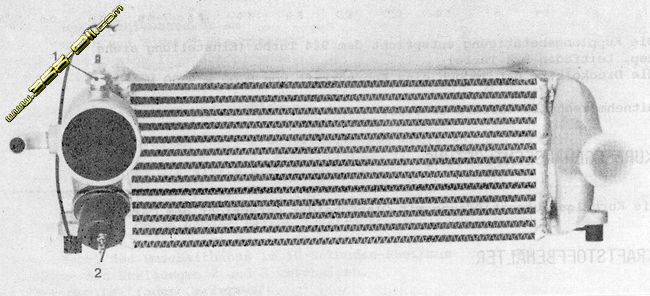

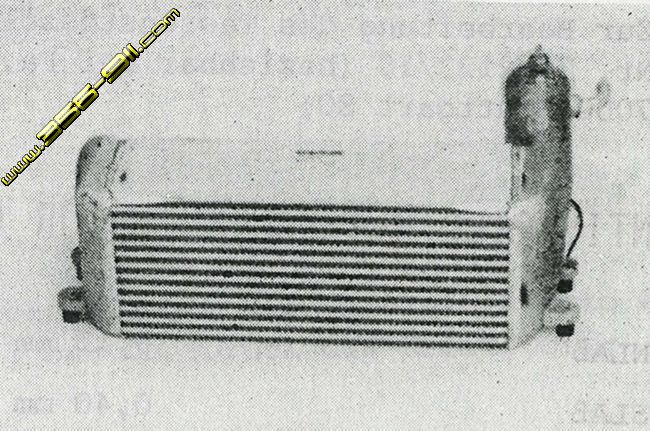

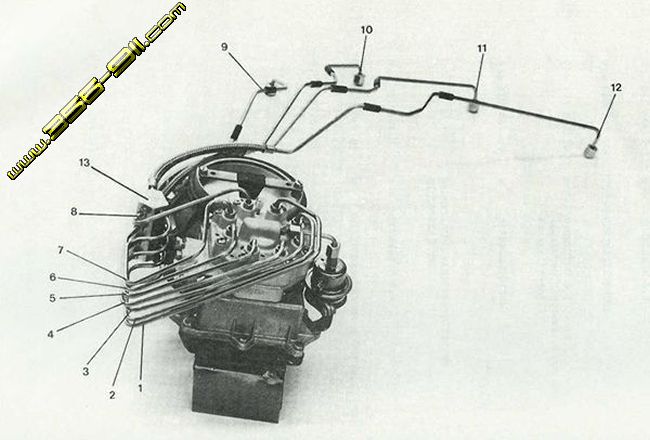

Here's some scans taken from the 924 Carrera GTS Technical Manual. The second Scan shows the 928 fuel distributer and the two into one fuel line block. Pictures 3 and 4 show a couple of different angles of the front mounted intercooler. Very similar in shape and location to what is used on the later 944 Turbo.
I'll try to expand on the technical Information contained in the manual in the weeks to come.
